Drawing actions


Drawing actions allow to the user to modify the drawings at his will. They can be accessed through the drawings action button.

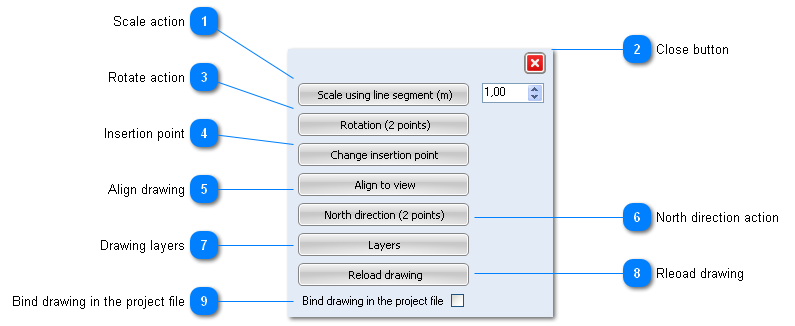

Drawing actions
1

Scale action

1. Scale action
See how to use this action here...
2

Close button

2. Close button
Closes the drawing actions dialog.
3

Rotate action

3. Rotate action
Rotates the drawing at the x-axis by drawing a line in the drawing that should be horizontal.
4

Insertion point

4. Insertion point
Changes the insertion point of the drawing.
5

Align drawing

5. Align drawing
See how to use this action here...
6

North direction action

6. North direction action
Set the north direction through the drawing. See more about the action here...
7

Drawing layers

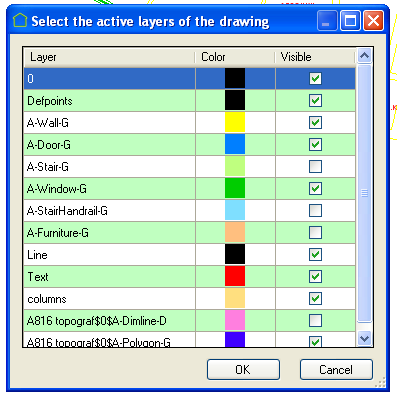

7. Drawing layers

From the layers dialog the user can set the visibility of the layers of the selected drawing.

8

Rleoad drawing

8. Rleoad drawing
Reloads drawing to it's initial state.
9

Bind drawing in the project file

9. Bind drawing in the project file
To include the drawing in the project file click this option. Usually is needed when you have to transfer your energy project to other machines or when you need to simplify the drawing.
