Guide dimensions

Like guide lines the user can draw guide dimensions.

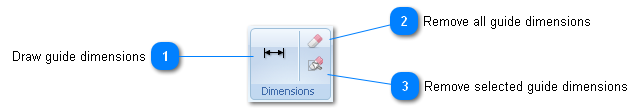

Guide dimensions

Draw guide dimensions

Click to draw guide dimensions

Remove all guide dimensions

Click to remove all the guide dimensions.

Remove selected guide dimensions

Click and select the guide dimensions to be removed.
