Measurements

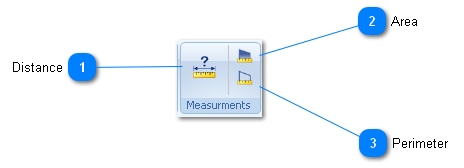

Measurements actions measure distances, perimeters and areas in the drawing.
Distance
Measure the distance between two points
Top
Area
Measure the area of a figure or a set of points
Top
Perimeter
Measure the perimeter of a figure or a set of points
Top
