Space type

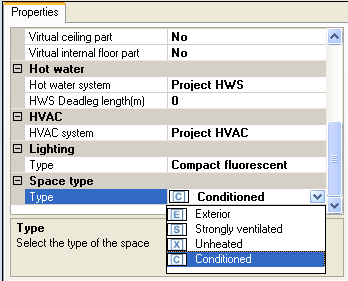

The space type indicated the type of condition the construction will be connected to this space. The type of a space can be set from the space properties.
