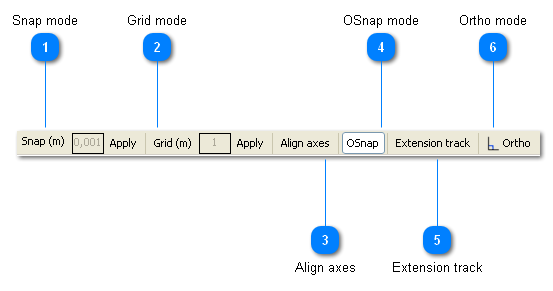

Pallete lower toolbar

Pallete lower toolbar

Snap mode

Snap, (not to be confused with "object snap") acts like a magnet to force the cursor to set increments of the screen.

Click to enable the snap mode. Snap distance (in meters) can be set in the text field. Click apply to apply the changes.

Grid mode

The Grid is a matrix of lines on the screen that can help you visualize things. You can enable or disable the snap and the grid from the down toolbar of the palette.

Click to enable the grid mode. Grid distance (in meters) can be set in the text field. Click apply to apply the changes.

Align axes

Click to align the XY axis during a drawing action.

OSnap mode

Click to enable/disable the osnap mode. Use also F3 as a shortcut key.

Extension track

Click to enable/disable the extension track.

Ortho mode

Click to enable/disable the osnap mode. Use also F8 as a shortcut key.
