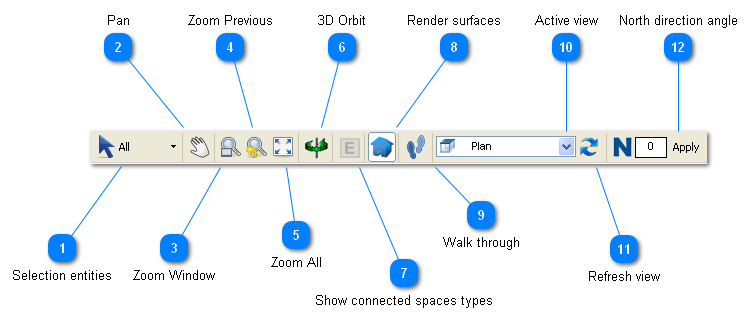

Palette upper toolbar
Selection entities
Set the type of entities that will be selected during the selection action in the building and block level.
Use it to select quickly common structures.
Top
Pan
Click to perform the pan action. Also use the middle mouse button.
Top
Zoom Window
Click to perform a zoom window action
Top
Zoom Previous
Click to perform the zoom previous action
Top
Zoom All
Click to perform the zoom all action
Top
3D Orbit
Click to perform a 3D Orbit action.
Top
Show connected spaces types
Shows the type of space that each of the construction is connected to.
This fuction is enabled in the space level.
Top
Render surfaces
Click to render the surfaces or to show as wired
Top
Walk through
Walks throught the building model
Top
Active view
Select the active view from the drop down list
Top
Refresh view
Refresh the view to the active view
Top
North direction angle
Set the north direction angle in this field. Click apply to confirm and applyt the changes.
Top
