Energy zone activity and electro-mechanical systems

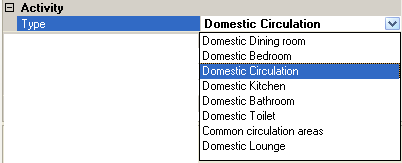

From the spaces properties the user can set the activity of the energy zone.

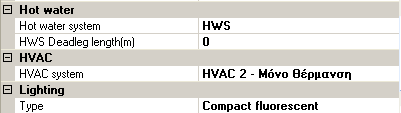

Also the Hot water serving the zone, the HVAC system and the lighting type can be set.
