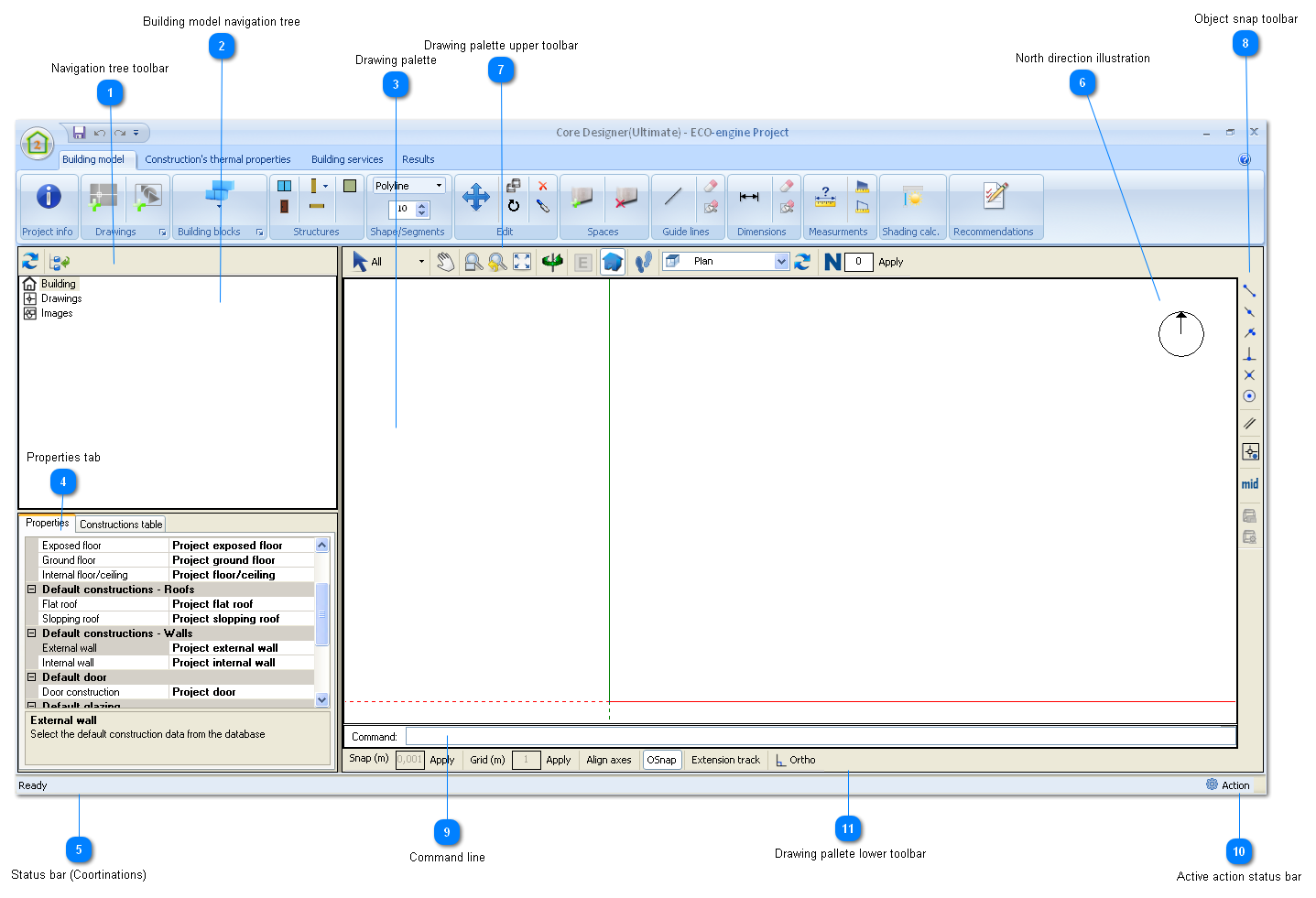

Building model editor
Navigation tree toolbar
Click to refresh the building model and to collapse all the tree nodes.
Top

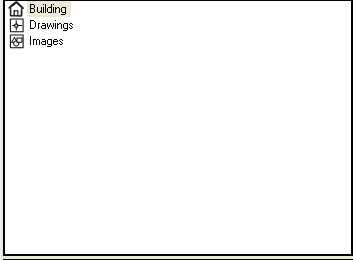

Building model navigation tree
From the building model navigation tree you can go through all the building elements and the drawings and images used for guidance.
Top

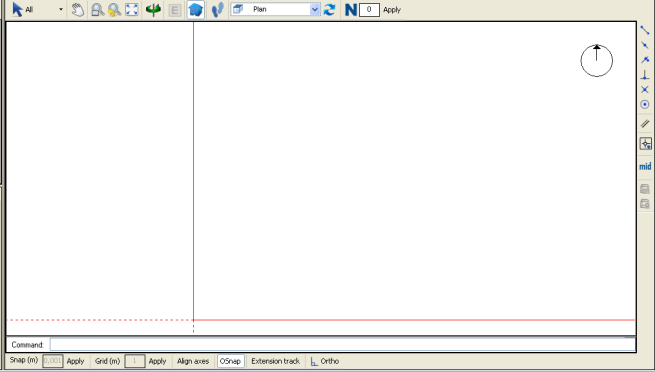

Drawing palette
In the drawing palette the user performs all the drawing actions and the entities selections.
Top

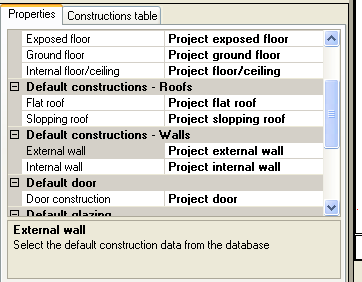

Properties tab
The properties of the selected entities can be edited and reviewed in the properties tab.
Top
Status bar (Coortinations)
When the cursor is on the palette the coordination are shown in the status bar.
Top
North direction illustration
In upper right corner of the drawing pallete the north direction is shown
Top
Drawing palette upper toolbar
Perform actions during drawing.
More...
Top
Object snap toolbar
Osnap modes.
More...
Top
Command line
Perform commands during drawing actions.
Top
Active action status bar
Shows the name of the active action.
Top
Drawing pallete lower toolbar
Enable/disable drawing modes.
More...
Top
